篩子根據他們的結構和運動特點，可分為以下幾種類型：
一、固定篩。包括固定格子篩、固定條篩和懸臂條篩。由于其構造簡單，不需要?jiǎng)恿Γ栽谶x礦工藝中廣泛用于大塊礦石的篩分。

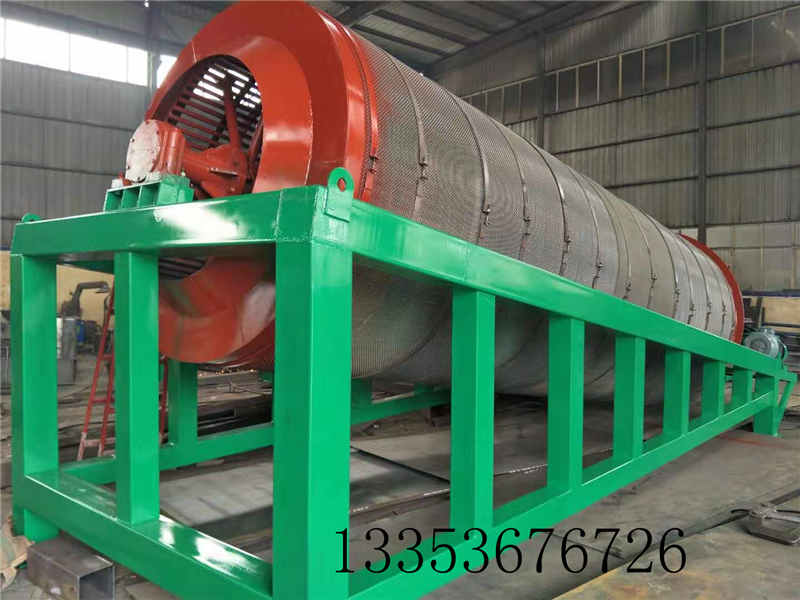

二、筒形篩。包括圓筒篩、圓錐篩和角錐篩。主要用于建筑工業篩分和清洗碎砂子、也常用在選礦工藝中作洗礦脫泥用。

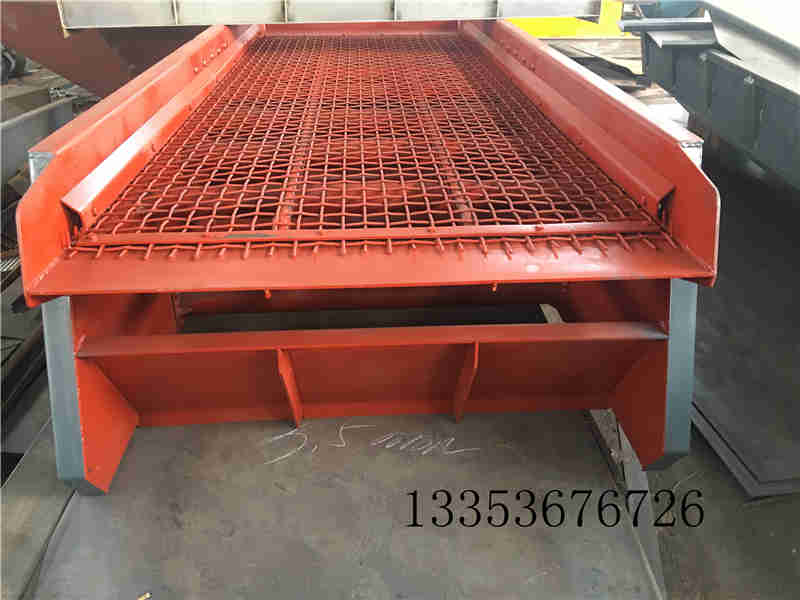

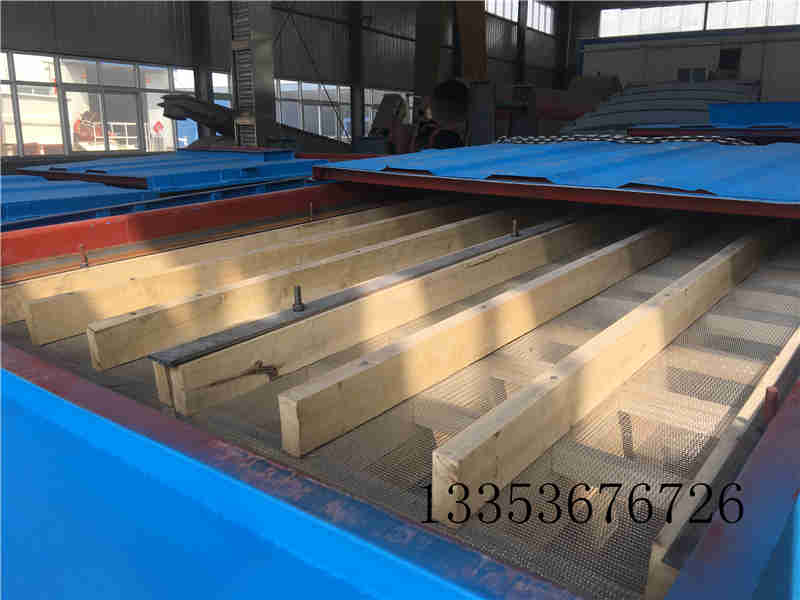

三、振動篩。包括機械振動篩和電力振動篩兩種。屬于前者的有慣性振動篩、自定中心振動篩、直線振動篩和共振篩。屬于后者的有點振動篩。根據篩面運動軌跡不用又可分為圓振動篩和直線振動篩兩種，圓振動篩是由不平衡振動器的回轉質量產生的激烈振力使篩體產生劇烈的振動作用，篩子的運動軌跡為圓形或接近圓形，由于篩分的效率比較高，目前在選礦廠中應用最廣泛。直線振動篩由振動器定向拖動篩子，篩框?yàn)樗桨惭b運動軌跡成直線振動，以保證無聊在篩面上產生劇烈的抖動，主要用于煤的脫水分級、脫介、脫泥，也可用在磁鐵礦的沖洗、脫泥和分級等。
篩網規格對照表
|
目數
|
絲徑
|
孔徑
|
開孔面積
|
網重（磅） /100 平方英尺
|
|
英寸
|
毫米
|
Inch
|
毫米
|
|
1x1
|
.080
|
2.03
|
.920
|
23.37
|
84.6
|
41.1
|
|
2X2
|
.063
|
1.60
|
.437
|
11.10
|
76.4
|
51.2
|
|
3X3
|
.054
|
1.37
|
.279
|
7.09
|
70.1
|
56.7
|
|
4X4
|
.063
|
1.60
|
.187
|
4.75
|
56.0
|
104.8
|
|
4X4
|
.047
|
1.19
|
.203
|
5.16
|
65.9
|
57.6
|
|
5X5
|
.041
|
1.04
|
.159
|
4.04
|
63.2
|
54.9
|
|
6X6
|
.035
|
.89
|
.132
|
3.35
|
62.7
|
48.1
|
|
8X8
|
.028
|
.71
|
.097
|
2.46
|
60.2
|
41.1
|
|
10X10
|
.025
|
.64
|
.075
|
1.91
|
56.3
|
41.2
|
|
10X10
|
.020
|
.51
|
.080
|
2.03
|
64.0
|
26.1
|
|
12X12
|
.023
|
.584
|
.060
|
1.52
|
51.8
|
42.2
|
|
12X12
|
.020
|
.508
|
.063
|
1.60
|
57.2
|
31.6
|
|
14X14
|
.023
|
.584
|
.048
|
1.22
|
45.2
|
49.8
|
|
14X14
|
.020
|
.508
|
.051
|
1.30
|
51.0
|
37.2
|
|
16X16
|
.018
|
.457
|
.0445
|
1.13
|
50.7
|
34.5
|
|
18X18
|
.017
|
.432
|
.0386
|
.98
|
48.3
|
34.8
|
|
20X20
|
.020
|
.508
|
.0300
|
.76
|
36.0
|
55.2
|
|
20X20
|
.016
|
.406
|
.0340
|
.86
|
46.2
|
34.4
|
|
24X24
|
.014
|
.356
|
.0277
|
.70
|
44.2
|
31.8
|
|
30X30
|
.013
|
.330
|
.0203
|
.52
|
37.1
|
34.8
|
|
30X30
|
.012
|
.305
|
.0213
|
.54
|
40.8
|
29.4
|
|
30X30
|
.009
|
.229
|
.0243
|
.62
|
53.1
|
16.1
|
|
35X35
|
.011
|
.279
|
.0176
|
.45
|
37.9
|
29.0
|
|
40X40
|
.010
|
.254
|
.0150
|
.38
|
36.0
|
27.6
|
|
50X50
|
.009
|
.229
|
.0110
|
.28
|
30.3
|
28.4
|
|
50X50
|
.008
|
.203
|
.0120
|
.31
|
36.0
|
22.1
|
|
60X60
|
.0075
|
.191
|
.0092
|
.23
|
30.5
|
23.7
|
|
60X60
|
.007
|
.178
|
.0097
|
.25
|
33.9
|
20.4
|
|
70X70
|
.0065
|
.165
|
.0078
|
.20
|
29.8
|
20.8
|
|
80X80
|
.0065
|
.165
|
.0060
|
.15
|
23.0
|
23.2
|
|
80X80
|
.0055
|
.140
|
.0070
|
.18
|
31.4
|
16.9
|
|
90X90
|
.005
|
.127
|
.0061
|
.16
|
30.1
|
15.8
|
|
100X100
|
.0045
|
.114
|
.0055
|
.14
|
30.3
|
14.2
|
|
100X100
|
.004
|
.102
|
.0060
|
.15
|
36.0
|
11.0
|
|
100X100
|
.0035
|
.089
|
.0065
|
.17
|
42.3
|
8.3
|
|
110X110
|
.0040
|
.1016
|
.0051
|
.1295
|
30.7
|
12.4
|
|
120X120
|
.0037
|
.0940
|
.0064
|
.1168
|
30.7
|
11.6
|
|
150X150
|
.0026
|
.0660
|
.0041
|
.1041
|
37.4
|
7.1
|
|
160X160
|
.0025
|
.0635
|
.0038
|
.0965
|
36.4
|
5.94
|
|
180X180
|
.0023
|
.0584
|
.0033
|
.0838
|
34.7
|
6.7
|
|
200X200
|
.0021
|
.0533
|
.0029
|
.0737
|
33.6
|
6.2
|
|
250X250
|
.0016
|
.0406
|
.0024
|
.0610
|
36.0
|
4.4
|
|
270X270
|
.0016
|
.0406
|
.0021
|
.0533
|
32.2
|
4.7
|
|
300X300
|
.0051
|
.0381
|
.0018
|
.0457
|
29.7
|
3.04
|
|
325X325
|
.0014
|
.0356
|
.0017
|
.0432
|
30.0
|
4.40
|
|
400X400
|
.0010
|
.0254
|
.0015
|
.370
|
36.0
|
3.3
|
|
500X500
|
.0010
|
.0254
|
.0010
|
.0254
|
25.0
|
3.8
|
|
635X635
|
.0008
|
.0203
|
.0008
|
.0203
|
25.0
|
2.63
|
